Universal S/R Chassis Sensor Loom

Universal Sensor loom is designed around S15/R33-34

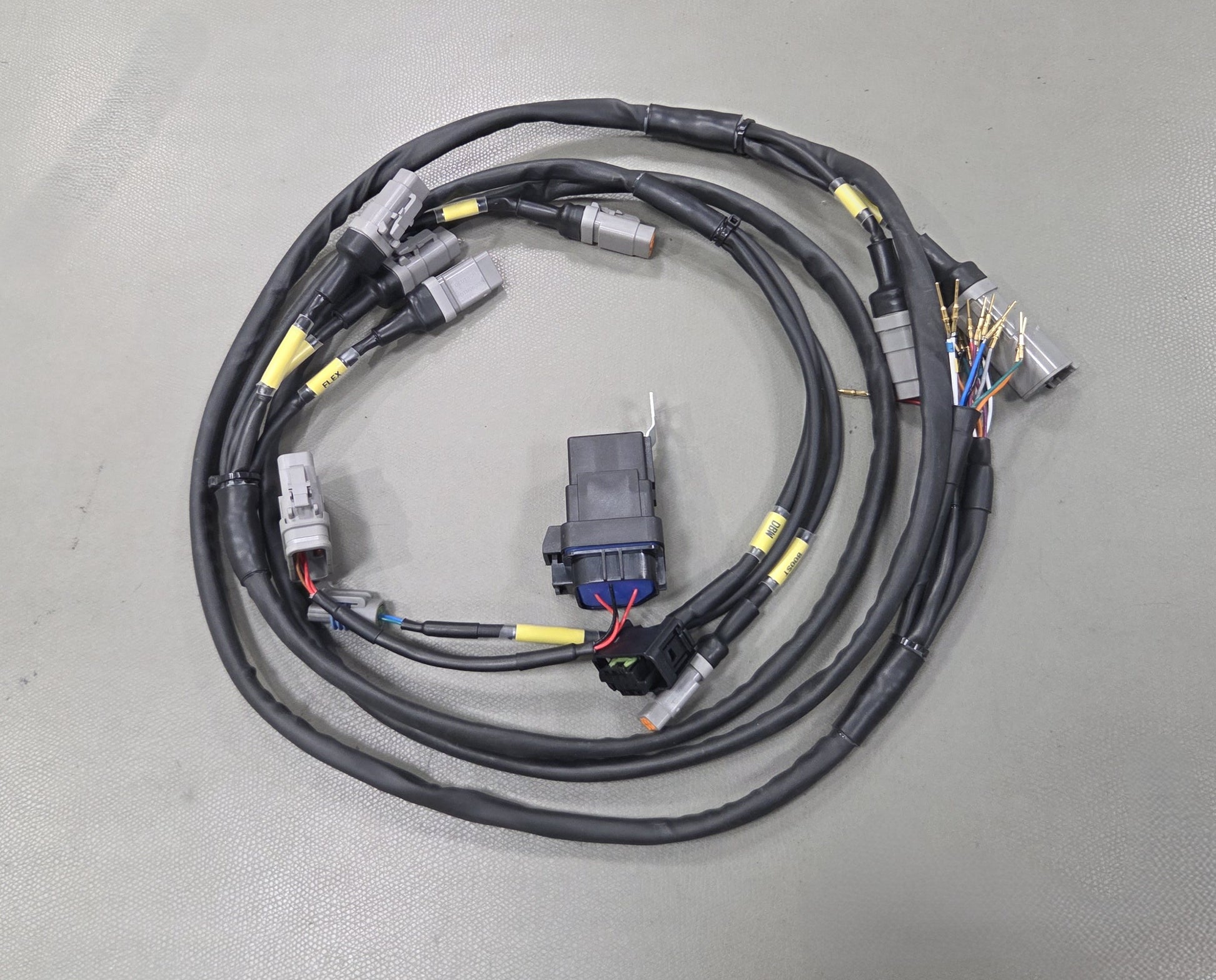

Designed to Run with factory engine loom when adding aftermarket Ecu to allow, DBW, Lambda module, Boost solenoid, Fuel Pressure/Temp, Oil Pressure/Temp, Flex metre, Boost Pressure, Air temp and Bosch DBW throttle

Air Temp sensor is to suit AC delco Air Temp

Map and Boost Pressure Suit Emtrons 1, 4 and 7 Bar Map sensors

Dbw Relay Included with Main Loom

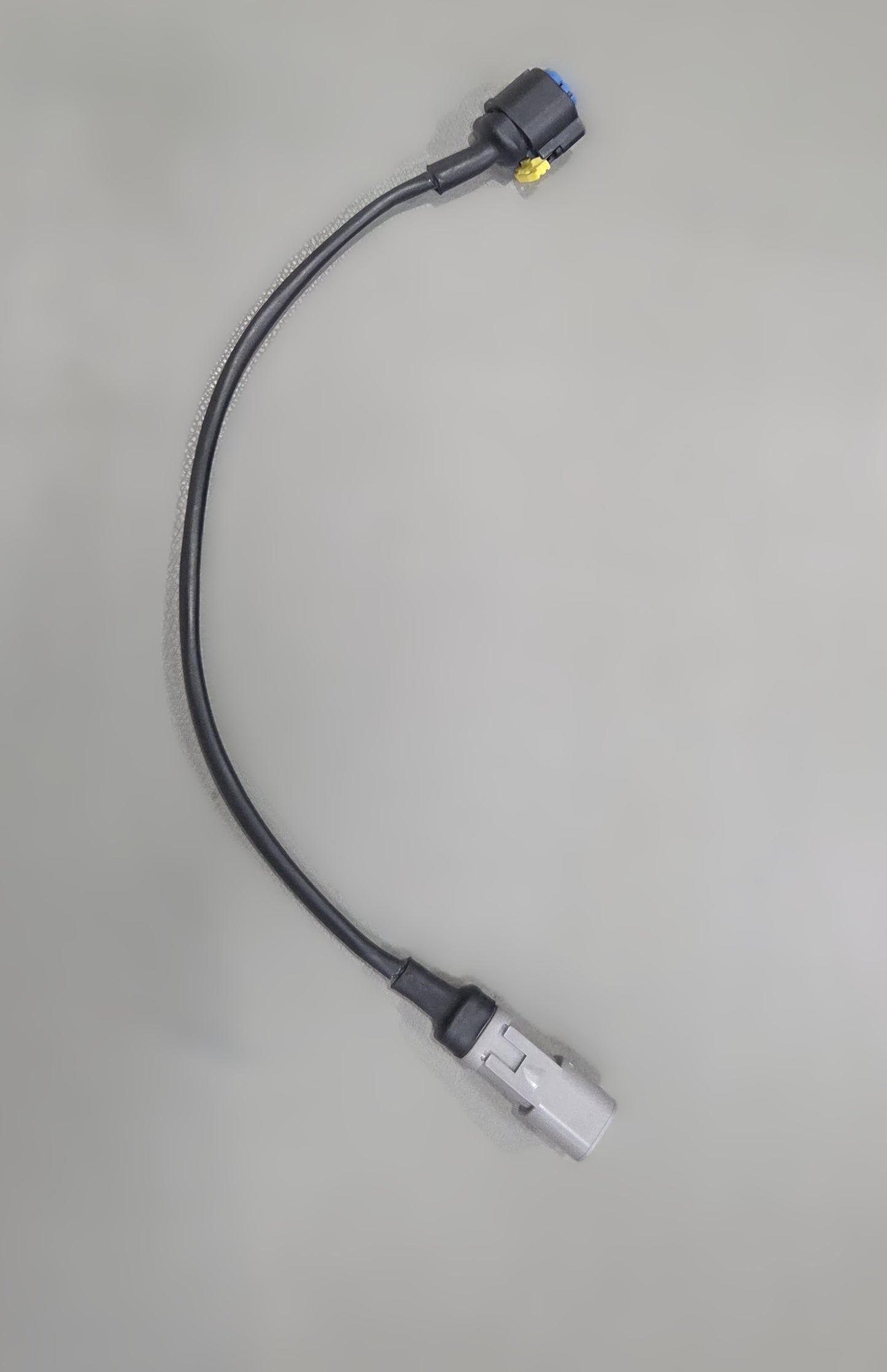

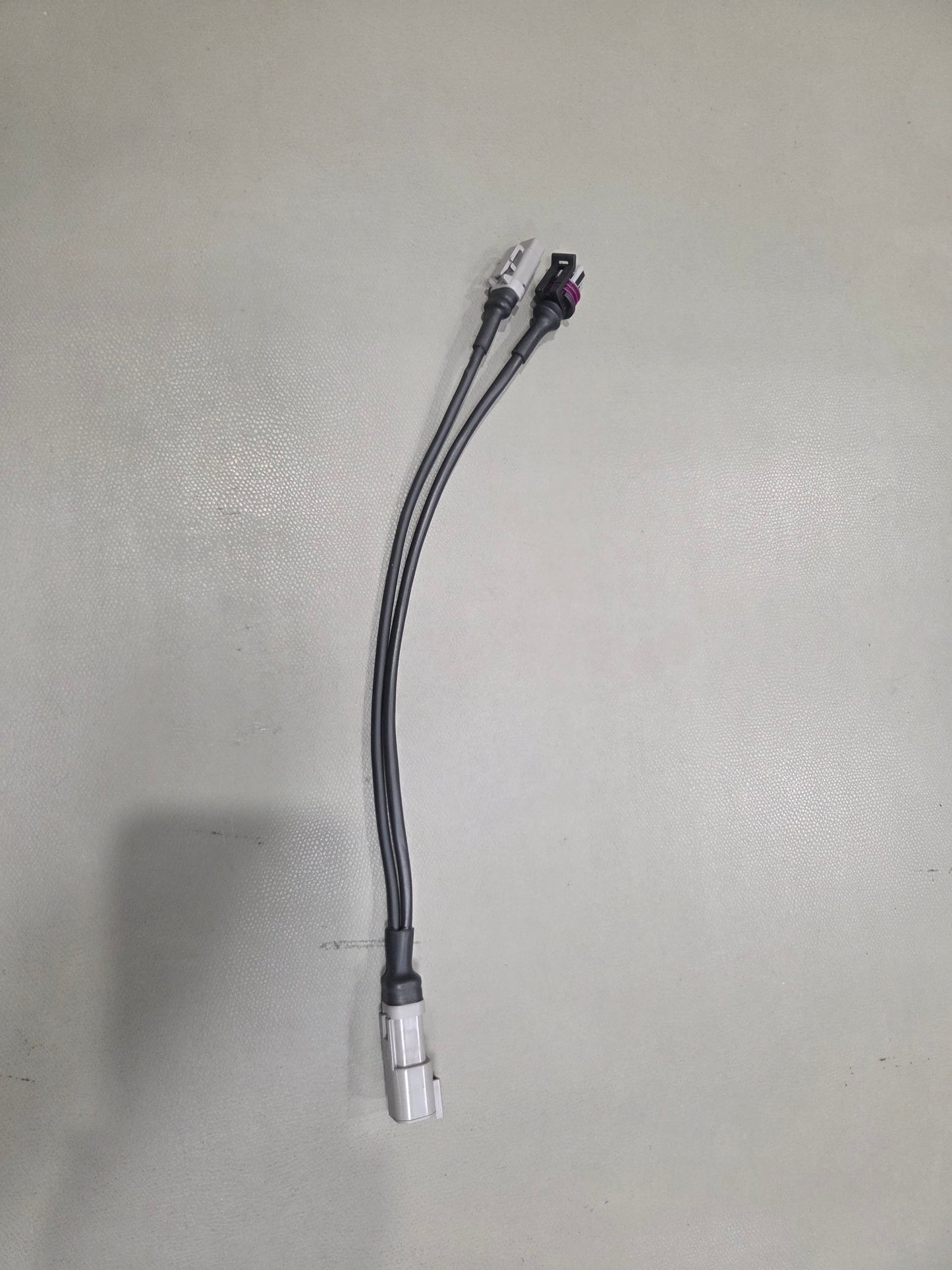

Oil Pressure and Temp, Fuel Pressure and Temp, Flex are all removable looms if not being used, also designed to run either Honeywell Pressure sensor with SRS Temp sensor (or any 2 pin DTM Temp sensor) OR Bosch Combo Sensor

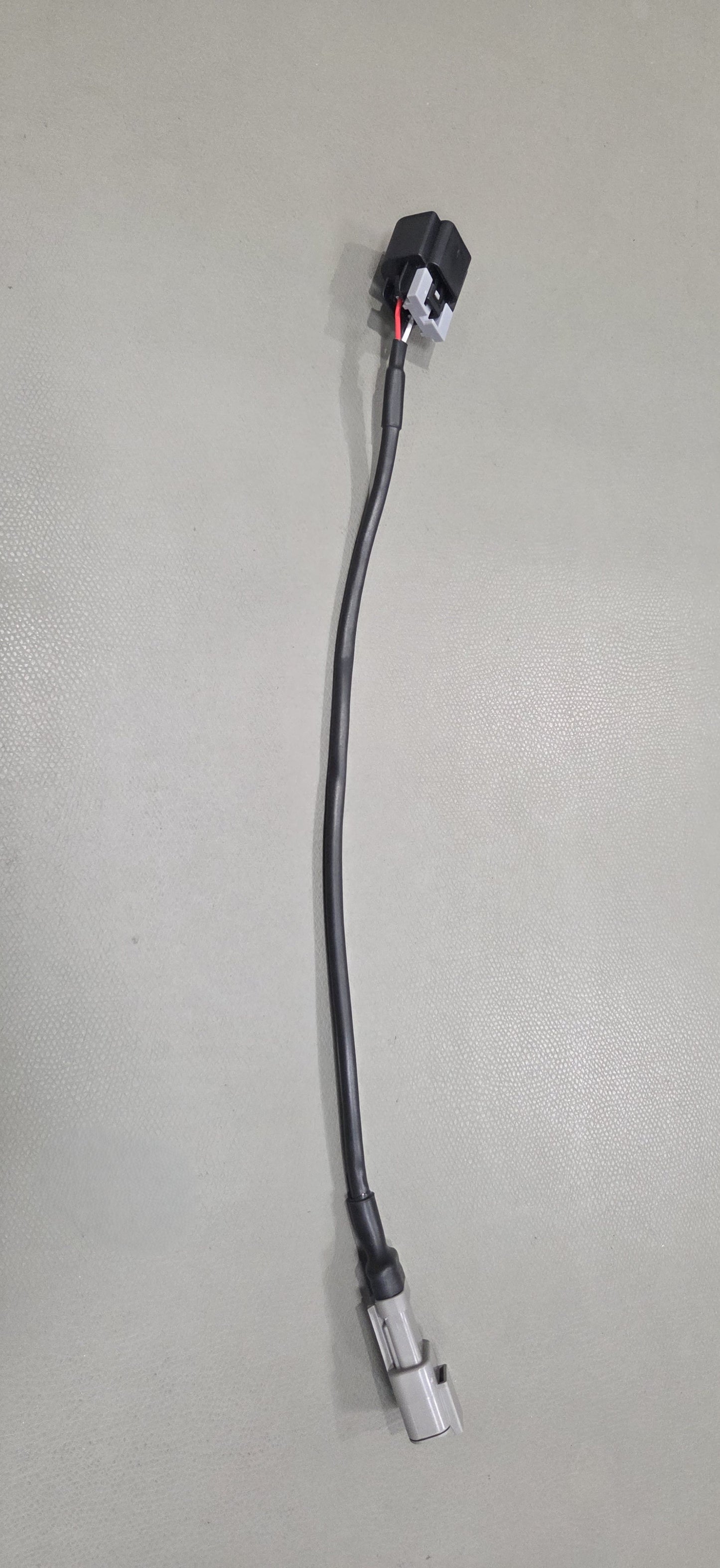

Flex Metre sub loom suits Continental Flex metre

Each Sub loom is 350mm total length

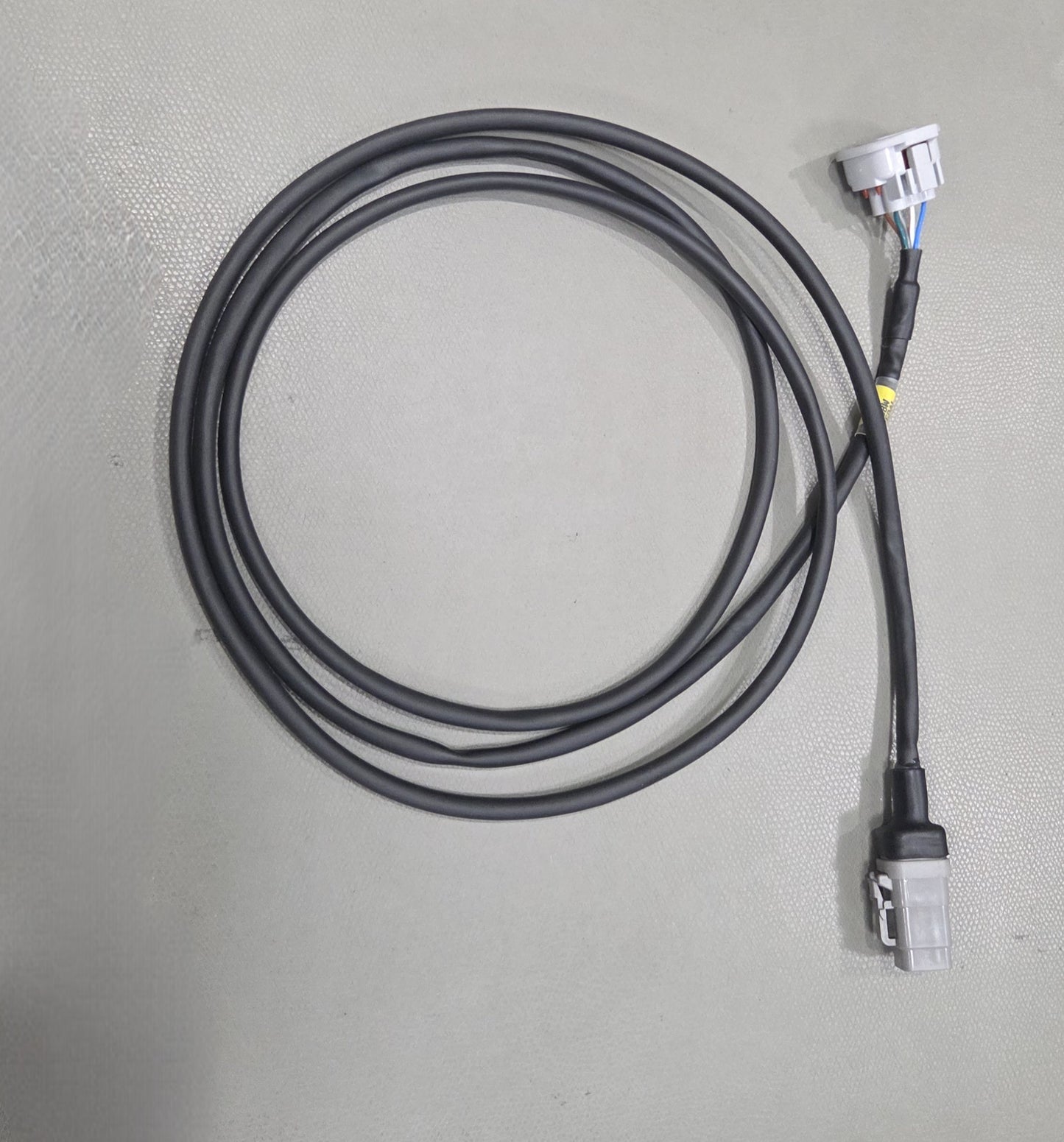

Pedal Loom is a 6 Pin DTM and Nissan 350z pedal connector the other (total length of 1950mm)
